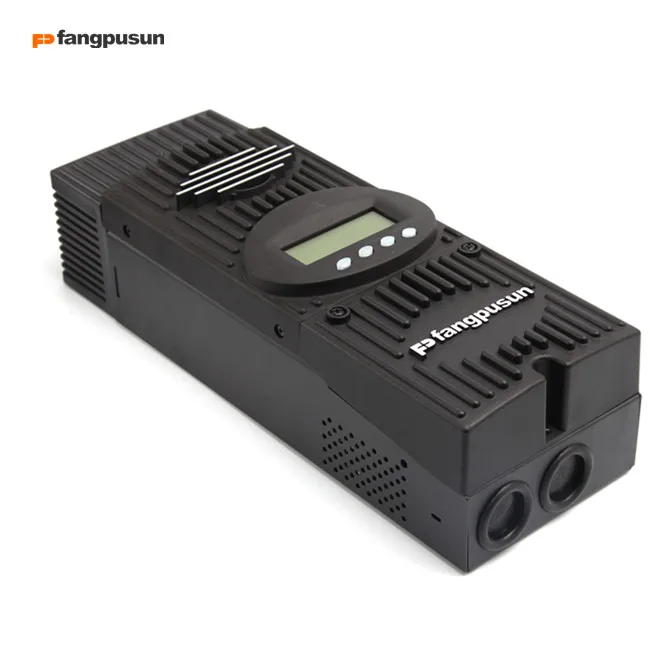

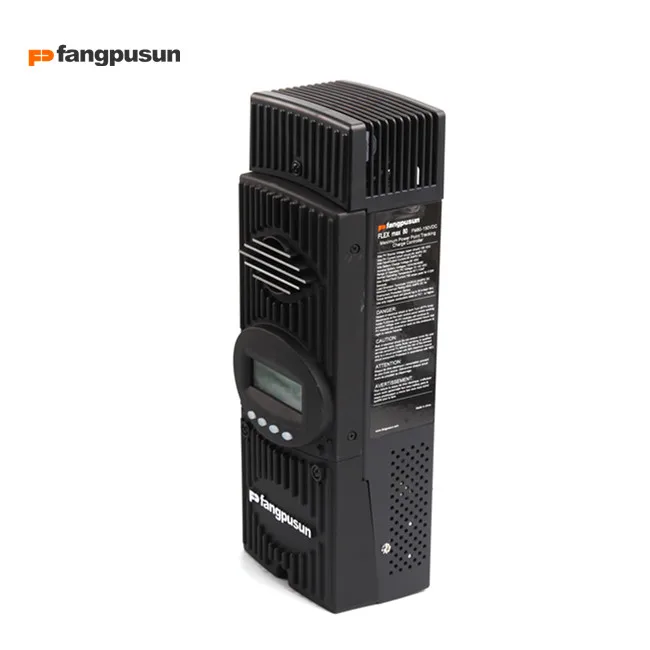

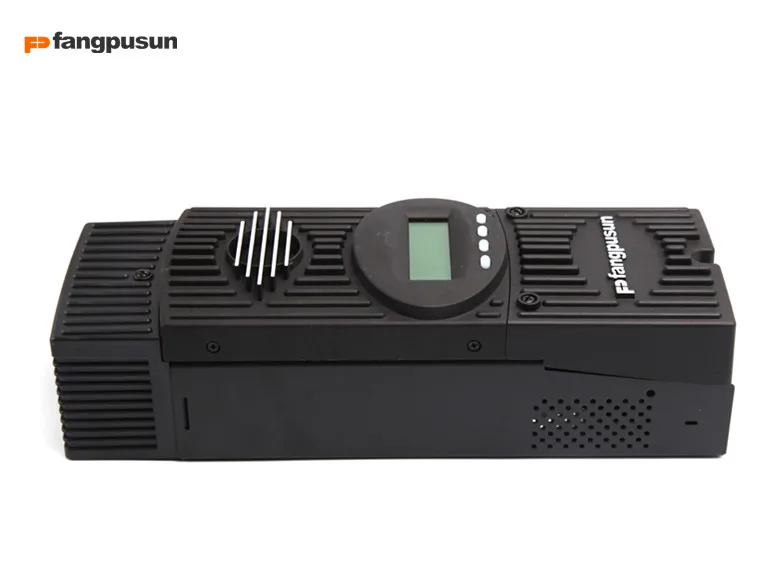

Flexmax 7500W 80A MPPT Solar charge controller 12V 24V 36V 48V 60V

165,000.00

Availability: In stock

Category:



  • Maximum Current: 80A
  • Model Number: MPPT80A
  • Application: Solar System Controller
  • is_customized: Yes
  • PV array voltage: Max 150 VDC input
  • Nominal Battery Voltages: 12,24,36,48, or 60 VDC
  • Maximum Output Current: 80 amps
  • Weight – Unit: 6.8 kg
  • Weight – shipping: 7.02 kg
  • Dimensions-Unit: 40X14X10cm
  • Warranty: Two year warranty

FANGPUSUN7

MPPT60 MPPT80
The FLEXmax family of charge controllers is the latest innovation in Maximum Power

Point Tracking (MPPT) charge controllers from fangpusun.

The innovative FLEXmax MPPT software algorithm is both continuous and active,

increasing your photovoltaic array power yield up to 30%
compared to non-MPPT controllers. Thanks to active cooling and intelligent thermal

management cooling, both FLEXmax charge controllers
can operate at their full maximum current rating, 60 Amps or 80 Amps respectively, in

ambient temperatures as high as 104°F (40°C).MPPT 60 2__MPPT 60 3__
Included in all of the FLEXmax Charge Controllers are the revolutionary features first

developed by fangpusun, including support for a wide
range of nominal battery voltages and the ability to step-down a higher voltage solar

array to recharge a lower voltage battery bank. A built-in,
backlit 80 character display shows the current status and logged system performance

data for the last 128 days at the touch of a button. The
integrated OutBack network communications allows FLEXmax series Charge Controllers to

be remotely programmed and monitored via a MATE
system display and provides unrivaled complete system integration.

FLEXmax MPPT Charge Controllers are the only choice when you demand a high

performance, efficient and versatile charge controller for your
advanced power system.

Product features
1.Increases PV Array Output by up to 30%
2.Advanced Continuous Maximum Power Point Tracking
3.Full Power Output in Ambient Temperatures up to 104°F (40°C)
4.Battery Voltages from 12 VDC to 60 VDC
5.Programmable Auxiliary Control Output
6.Built-in 128 days of Data Logging
7.Fully Network Integrated and Programmable

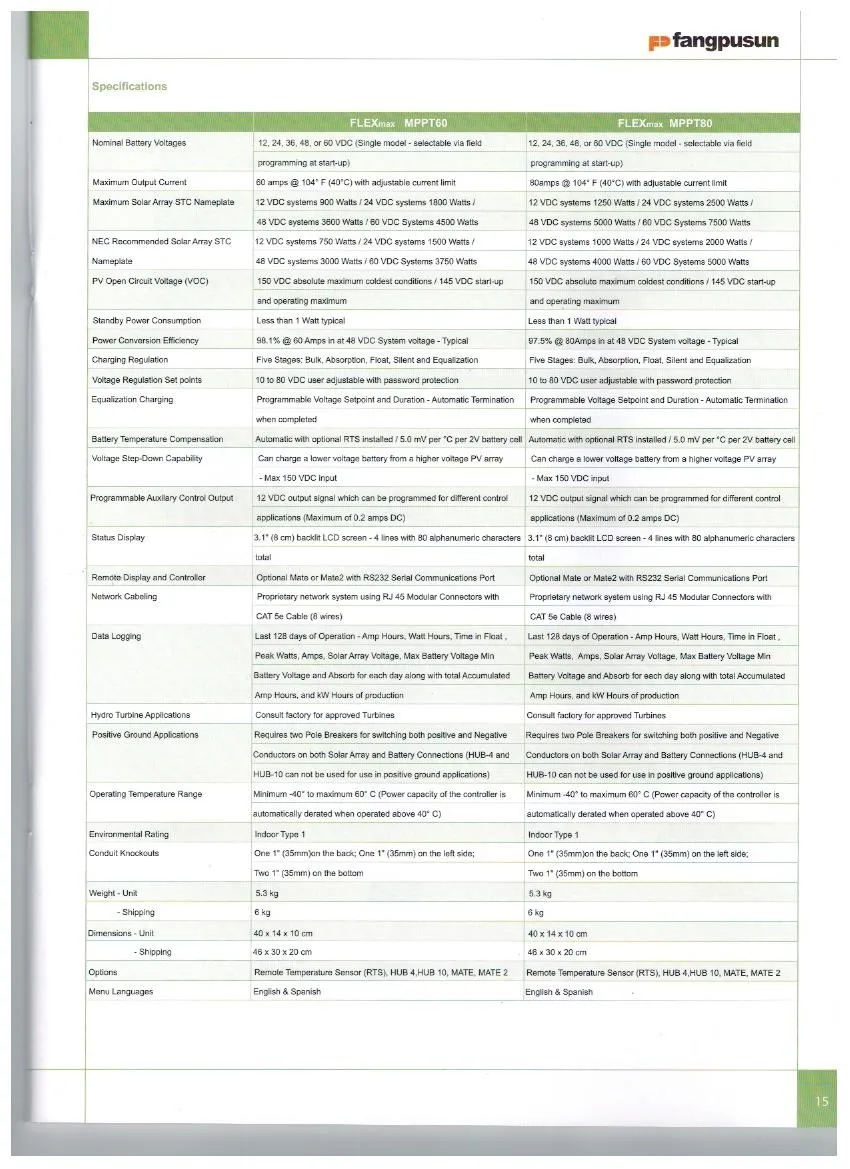

technical data for 60 80A-21

6

5

80280380480A80

page 1page 2

20 Pc

Displays
Text LCD display for operating parameters,fault messages,self test
Options
Menu-driven operation
Programming by buttons

Certificates
Compliant with European Standards(CE)
RoHS compliant

GB/T19001-2008/ISO9001:2008
Made in China
